Cắt lọc sét nguồn điện, MCD 50-B-OS/3+1, thiết bị cắt lọc sét nguồn điện, MCD 50-B-OS/3+1, MCD 50-B 3+1-OS

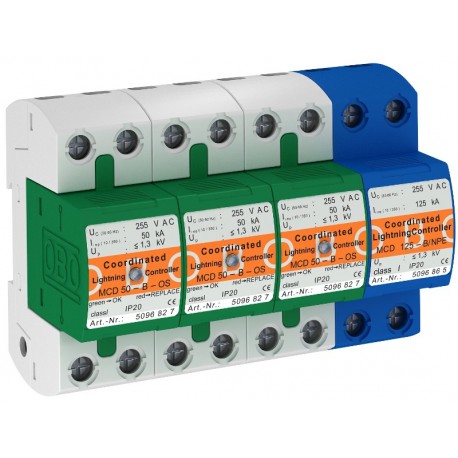

Combination arrestor set, 4-pole, with visual function display, for use in TN-S and TT networks:

Completely pre-terminated and ready for connection, consisting of:
MCD 50-B-OS: Coordinated lightning current arrestor, Type 1 (Class B) to EN 61643-11. For interface 0 to 2 (LPZ) according to lightning protection zone concept to IEC 61312-1 and DIN VDE 0185-305.
MCD 125-B/NPE: Coordinated N-PE spark gap, Type 1 (Class B) to EN 61643-11 for use in TN-S and TT systems. For interface 0 to 1 in accordance with lighting protection zone concept to IEC 61312-1 and/or DIN VDE 0185-305.

• Arresting capacity 50 kA 10/350 µs per pole
• Power consumption < 26 mW/pole
• Protection level < 1.3 kV
• Line follow current quenching 25 kA Ipeak
• lncl. plug caps for identifying the connections
• Encapsulated, non-extinguishing spark gap
• Can be used in standard distributor housings.

Application example: Compact surge protection concepts and installations of requirement class B+C arrestors in a distributor without decoupling inductances and/or line lengths, e.g. direct on mobile radio system.

Article number 5096836
Nominal voltage UN V 230
SPD to EN 61643-11 Type 1
SPD to IEC 61643-1 class I
LPZ 0&#x2192;2
Lightning impulse current (10/350) Iimp kA 50
Lightning impulse current (10/350) [total] kA 125
Nominal discharge surge current (8/20) In kA 50
Arrester surge current (8/20) [total] kA 125
Voltage protection level Up kV 1,3
Response time tAns <100
Follow current quenching capacity Ipeak Ifi peakkA 25
Maximum back-up fuse A 500
Temperature range &#x03d1; &#x00b0;C -40
Division unit TE (17.5 mm) 8
Protection rating IP 20
Connection cross-section, rigid mm&#x00b2; 10
Connection cross-section, multi-wire mm&#x00b2; 10
Connection cross-section, flexible mm&#x00b2; 10
