DSFWW, 5093 27 2, 5093272, chống sét cáp đồng trục 75Ω kết nối kiểu F, chống sét đường tín hiệu đồng trục 75Ω kết nối đầu FCoaxial protection devices for transmission and reception technology

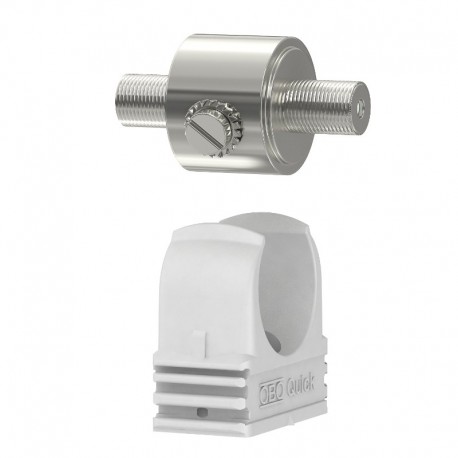

Coaxial protection device for F connection: female/female
Coaxial data cable protection devices
• Basic protection
• High pulsed current carrying capacity 2 x 2.5 kA (10/350 μs)
• Simple installation (adapter plug), m = plug/f = female connector
• Various plug combinations
• With F connector
• Optimised transmission behaviour
• Including OBO M25 Quick clip for simple installation
Application: Protection of TV and SAT systems, multiswitches, receivers and DVB-T(2)
| DSFWW | |||
| Article number | 5093 27 2 | ||
| Maximum continuous voltage AC | UC | V | 130 V |
| Maximum continuous voltage DC | UC | V | 185 V |
| Category | Type 1+2 / D1+C2 | ||
| Lightning protection zone LPZ | 0→2 | ||
| Number of poles | 1 | ||
| Rated current | IL | A | 5 A |
| Wave resistance | ZL | Ω | 75 Ω |
| Impulse durability wire-wire | kA (8/20 μs) | C2: 10 kV / 5 kA (8/20 μs) | |
| Impulse durability wire-earth | C2: 10 kV / 5 kA (8/20μs) | ||
| Impulse discharge current (10/350) | Iimp | kA | 1 kA |
| Total discharge current (8/20) | kA | 10 kA | |
| Total discharge current (10/350) | 2 kA | ||
| Protection level | V | <800 V | |
| Frequency range | GHz | 0 – 3,4 GHz | |
| Insertion loss | S21 | dB | ≤0,9 dB |
| Return loss | S11 | dB | ≥14 dB |
| Temperature range | ϑ | °C | -40 - +80 °C |
| Installation type | Connector/cable adapter | ||
| Connection system | F | ||
| Protection rating | IP40 | ||
| Shielding connection available | Yes | ||
| Shield connection | Direct | ||
| Testing standard | IEC 61643-21 | ||
