DSH TNC 255, chống sét đường điện, chống sét nguồn điện, chống sét cấp 1, chống sét đường điện 3 pha, chống sét nguồn điện 3 pha

Chống sét đường điện, chống sét nguồn điện, chống sét cấp 1

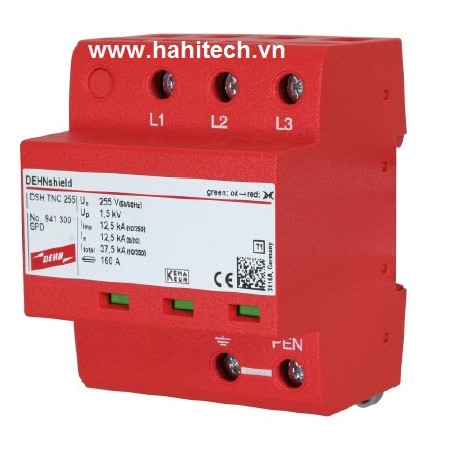

Mã sản phẩm: DSH TNC 255

Hãng: DEHN

Xuất xứ: Đức

• Application-optimised prewired sparkgap-based combined lightning currentand surge arrester

• Space-saving arrester for compact andsimply equipped electrical installationswith reduced technical requirements

• Capable of protecting terminal equipment

Three-pole application-optimised combined lightning current and surge arrester for 230/400 V TN C systems SPD type 1 according to EN 61643-11 For use in compact and simply equipped electrical Installations with reduced technical requirements Spark gap technology with follow current limitation Operating state/fault indication by indicator flag in the inspection window Leakage-current-free, non-exhausting design Max. continuous operating voltage: 255 V a.c. Voltage protection level: <= 1.5 kV Lightning impulse current (10/350): 37,5 kA Energy coordinated according to IEC 62305-4 (VDE 0185-305-4) with type 2 and 3 arresters of the Red/Line family, as well as directly coordinated with terminal equipment DIN rail mounted device in accordance with DIN 43880, 4 modules

Delivery and installation.

Brand: DEHN + SÖHNE

Type: DSH TNC 255

Part No.: 941300

CATALOGUE Ở CUỐI TRANG

|
|
|
|
|
|
|
