Measuring and testing systems

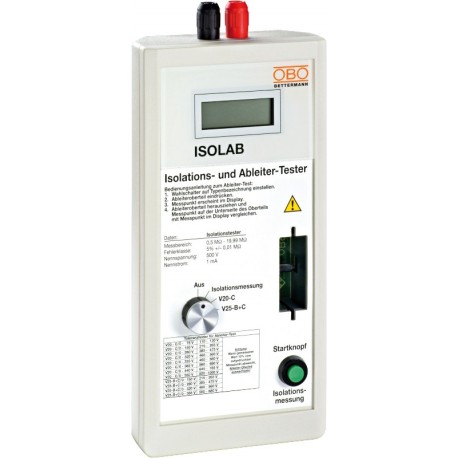

ISOLAB measuring system arrestor tester

To test the insulation resistance to DIN VDE 0100 Part 610 and the characteristic curve behaviourof the following surge voltage and lightning current arrestors:

• V10-C and V20-C:

Uc Tolerance range

75 V -> 110 V - 130 V

150 V -> 215 V - 265 V

280 V -> 385 V - 475 V

320 V -> 460 V - 560 V

335 V -> 460 V - 560 V

385 V -> 560 V - 680 V

440 V -> 645 V - 785 V

550 V -> 820 V - 1,000 V

• V25-B+C and V50-B+C:

Uc Tolerance range

150 V -> 215 V - 265 V

280 V -> 385 V - 475 V

320 V -> 460 V - 560 V

385 V -> 560 V - 680 V

• Varistor arrestors of other manufacturers can be tested for 1 or 3 mA characteristic curvebehaviour

• Battery operation

• Measuring cables contained in the scope of delivery.
