Surge protection for LSA-Plus systems
LSA-Plus technology / LSA basic protection

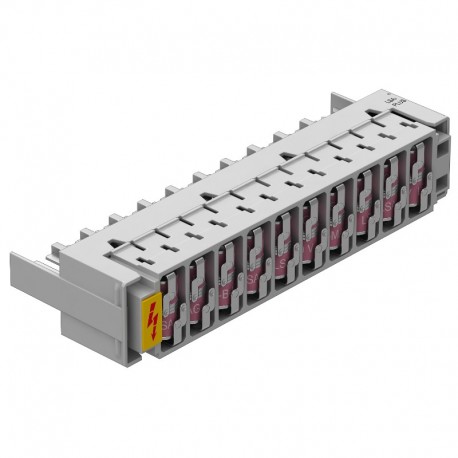

LSABMAG: LSA basic protection magazine for use in multi-core data cable systems, MCRsystems and telephone switchboards.
• Basic protection
• Equipped with 20 gas discharge tubes
• Max. voltage: 180 V
Application: Directly on LSA-Plus separating strips or connection strips (e.g. OBO LSAALEI(5084 00 8) or OBO LSATLEI (5084 01 2).
LSABMAG | |||
Article number | 5084 02 0 | ||
Maximum continuous voltage AC | UC | V | 120 |
Maximum continuous voltage DC | UC | 180 | |
Category | Type 2+3 / C2+C1 | ||
Lightning protection zone LPZ | 0→2 | ||
Number of poles | 20 | ||
Rated current | IL | A | 1 A |
Impulse durability wire-wire | kA (8/20 μs) | C2: 10 kV / 5 kA (8/20 μs) | |
Impulse durability wire-earth | C2: 10 kV / 5 kA (8/20μs) | ||
Total discharge current (8/20) | kA | 10 kA | |
Total discharge current (10/350) | kA | 1 kA | |
Protection level @ C1 | V | <750 V | |
Temperature range | ϑ | °C | -40 - +80 °C |
Installation type | LSA-Plus, connectable | ||
Connection system | Other | ||
Protection rating | IP20 | ||
Testing standard | IEC 61643-21 |
