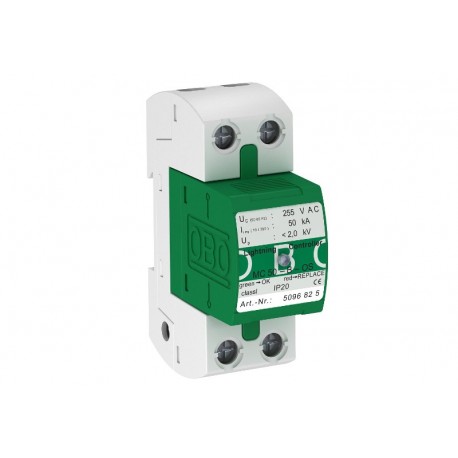

MC50BOS: Type 1 (Class B) lightning current arrestor with visual function display in accordancewith DIN EN 61643-11 for interface 0 to 1 (LPZ) in accordance with lighting protectionconcept to IEC 61313-1 and VDE 0185-305 (IEC 62305)

• Cover and base, plug-in base

• Arresting capacity 50 kA (10/350 μs) per pole

• Protection level < 2.0 kV

• Power consumption < 26 mW/pole

• Line following current quenching 25 kA Ipeak

• Incl. plug caps for identifying the connections

• Encapsulated, non-extinguishing spark gap: Can be used in standard distributor housingsApplication example: Industrial systems.Note: Required as decoupling length for surge voltage protection of 5 m of cable.

Download tài liệu MC50BOS

MC50BOS
Article number			5096 85 1
Nominal voltage	U­N	V	230
SPD to EN 61643-11			Type 1
SPD to IEC 61643-11			Class 1
Lightning protection Zone LPZ			0→1
Impulse discharge current (10/350)	I­imp	kA	50
Total discharge current (10/350)	I­Total 10/350	kA	50
Nominal discharge current (8/20)	I­n	kA	50
Arrestor surge current (8/20) [total]	I­Total 8/20	kA	50
Voltage protection level	Up	kV	<2,0
Response time	tA	ns	<100
Follow current interrupt rating (eff) [N-PE]	I­fi	kA	25
Maximum back-up fuse		A	500
Temperature range	ϑ	°C	-40 - +85
Division unit TE (17.5 mm)			2
Protection rating			IP20
Connection cross-section, rigid		mm²	10 - 50
Connection cross-section, multi-wire		mm²	10 - 35
Connection cross-section, flexible		mm²	10 - 25
