ND-CAT6/E-F, 5081 80 2, 5081802, chống sét cổng mạng LAN RJ45 PoE, chống sét camera IP, chống sét cổng mạng CAT6, OBO, Long Triết

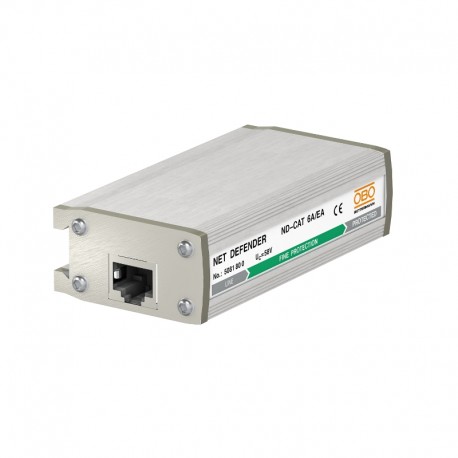

Surge protection for high-speed networks up to 1 GBit (Class ND-CAT6/E-F)
Data cable protection device for high-speed networks
• High-quality RJ45 sockets
• Low protection level at high current load
• Earthing via DIN rail or connection cable
• Support of Power over Ethernet + to 1 A
• Tested transmission quality in networks up to 10 GBit (Class EA) or CAT6A
• Rapid installation through plug-in version
• Incl. DIN rail fastening set and earthing cable
Application example: 10 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces
Net Defender fine protection
Data cable protection device for high-speed networks
Protection class: Fine protection
High-quality RJ45 sockets
Low protection level at high current load
Earthing via DIN rail or connection cable
Support of Power over Ethernet + to 1 A
Tested transmission quality in networks up to 1 GBit/s (Class E) or CAT6
Rapid installation through plug-in version
Incl. DIN rail fastening set and earthing cable
Application example: 1 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces
Fabrikat: OBO BETTERMANN
Type: ND-CAT6/E-F
Item No.: 5081802
Connection options
| ND-CAT6/E-F | |||||||||||||||||||||||||||||
| Maximum continuous voltage AC | UC | 41 | 46 | ||||||||||||||||||||||||||
| Maximum continuous voltage DC | UC | Type 2+3 / C2+C1 | Type 1 / D1 | ||||||||||||||||||||||||||
| Category |
| Class E | Class E | ||||||||||||||||||||||||||
| Lightning protection zone LPZ |
| 8 | 8 | ||||||||||||||||||||||||||
| Channel performance ISO/IEC |
| C1: 0,3 kV / 0,15 kA (8/20µs) | C2: 3 kV / 1,5 kA (8/20µs) | ||||||||||||||||||||||||||
| Channel performance Ansi/EA |
| 5 | 10 | ||||||||||||||||||||||||||
| Number of poles |
| ||||||||||||||||||||||||||||
| Rated current | IL | -40-+80 | -40-+80 | ||||||||||||||||||||||||||
| Impulse durability wire-wire |
| RJ45 8(8) | RJ45 8(8) | ||||||||||||||||||||||||||
| Impulse durability wire-earth |
| Yes | Yes | ||||||||||||||||||||||||||
| Total discharge current (8/20) |
| Connection cable / DIN rail | Connection cable / DIN rail | ||||||||||||||||||||||||||
| Protection level wire-wire |
| ||||||||||||||||||||||||||||
| Protection level wire-earth |
| ||||||||||||||||||||||||||||
| Frequency range |
| ||||||||||||||||||||||||||||
| Temperature range | ϑ | ||||||||||||||||||||||||||||
| Installation type |
| ||||||||||||||||||||||||||||
| Connection system |
| ||||||||||||||||||||||||||||
| Protection rating |
| ||||||||||||||||||||||||||||
| Shielding connection available |
| ||||||||||||||||||||||||||||
| Shield connection |
| ||||||||||||||||||||||||||||
| Earthing via: |
| ||||||||||||||||||||||||||||
| Testing standard |
| ||||||||||||||||||||||||||||
