Surge protection for network technology

Surge protection for high-speed networks up to 10 GBit (ClassEA/CAT6A)

Data cable protection device for high-speed networks

• High-quality RJ45 sockets

• Low protection level at high current load

• Earthing via hat rail or connection cable

• Support of Power over Ethernet + to 1 A

• Tested transmission quality in networks up to 10 GBit (Class EA) or CAT6A

• Rapid installation through plug-in version

• Incl. DIN rail fastening set and earthing cable

Application example: 10 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camerasystems, ISDN S0 interfaces

Download tài liệu tổng

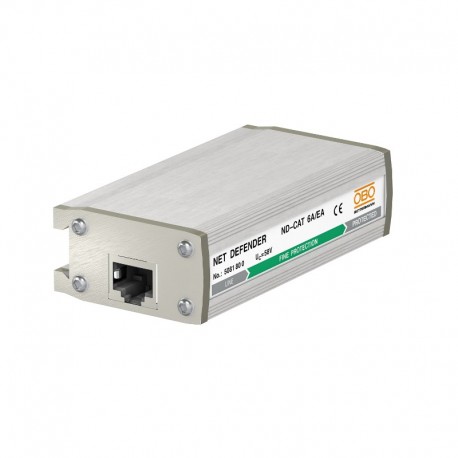

ND-CAT6A/EA
Article number			5081 80 0
Maximum continuous voltage AC	UC	V	41 V
Maximum continuous voltage DC	UC	V	58 V
Category			Type 2+3 / C2+C1
Lightning protection zone LPZ			1→3
Number of poles			8
Rated current	IL	A	1 A
Impulse durability wire-wire			C1: 0.3 kV / 0.15 kA (8/20 μs)
Impulse durability wire-earth			C2: 2 kV / 1 kA (8/20μs)
Total discharge current (8/20)		kA	7 kA
Protection level wire-wire		V	<120 V
Protection level wire-earth		V	<700 V
Frequency range		MHz	>500 MHz
Temperature range	ϑ	°C	-40 - +80 °C
Installation type			Connector/cable adapter
Connection system			RJ45 8(8)
Protection rating			IP20
Shielding connection available			Yes
Shield connection			Direct
Earthing via:			Connection cable
Testing standard			IEC 61643-21
