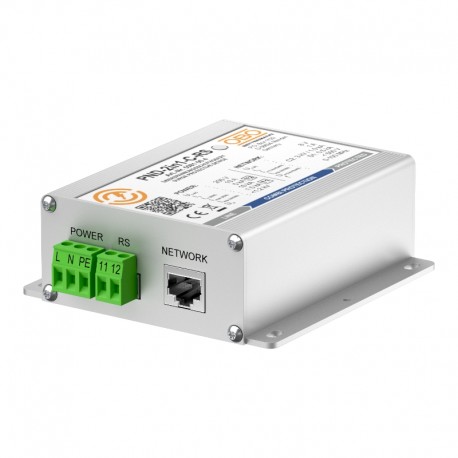

Combined protection device 2in1 for CCTV camera systems
Combination protection device
Data cable protection devices for coaxial and IP-based TV / camera systems
• Protection of power and data interface in a single device
• In aluminium housing
• Simple mounting with adapter plug
• Two-stage protection circuit
• Two-pole power connection for the power interface
• RJ45 connection for the data interface
• With remote signalling (RS) and LED operation display
• Incl. DIN rail fastening set
Application: Protection of CCTV, video signals; (IP) cameras and/or TV systems
Fabrikat: OBO BETTERMANN
Type: PND2in1CRS
Item No.: 5081064
Connection options
PND2in1CRS | |||||||||||||||||||||||||||||||||||||
Temperature range | ϑ | -20-+80 | |||||||||||||||||||||||||||||||||||
Protection rating |
| IP20 | |||||||||||||||||||||||||||||||||||
Earthing via: |
| Connection cable / DIN rail | |||||||||||||||||||||||||||||||||||
Lightning protection zone LPZ |
| 0→2 | |||||||||||||||||||||||||||||||||||
Power |
| ||||||||||||||||||||||||||||||||||||
SPD to IEC 61643-11 |
| Class I+II | |||||||||||||||||||||||||||||||||||
SPD to EN 61643-11 |
| Type 1+2 | |||||||||||||||||||||||||||||||||||
Maximum continuous voltage (L-N) | UC | 230 | |||||||||||||||||||||||||||||||||||
Rated current | IL | 10 | |||||||||||||||||||||||||||||||||||
Voltage protection level | Up | ||||||||||||||||||||||||||||||||||||
Idle voltage | UOC | 10 | |||||||||||||||||||||||||||||||||||
Nominal discharge current (8/20 µs) | In / L-N | 5 | |||||||||||||||||||||||||||||||||||
Maximum discharge current (8/20 μs) | Imax | 10 | |||||||||||||||||||||||||||||||||||
Impulse discharge current (10/350) | Iimp | 1,5 | |||||||||||||||||||||||||||||||||||
Network |
| ||||||||||||||||||||||||||||||||||||
Maximum continuous voltage AC | UC | 5,6 | |||||||||||||||||||||||||||||||||||
Maximum continuous voltage DC | UC | 8 | |||||||||||||||||||||||||||||||||||
Category |
| Type 1+2 / D1+C2 | |||||||||||||||||||||||||||||||||||
Impulse durability wire-wire |
| C1: 1 kV / 0,5 kA (8/20µs) | |||||||||||||||||||||||||||||||||||
Impulse durability wire-earth |
| C2: 4 kV / 2 kA (8/20µs) | |||||||||||||||||||||||||||||||||||
Protection level wire-wire |
| ||||||||||||||||||||||||||||||||||||
Protection level wire-earth |
| ||||||||||||||||||||||||||||||||||||
Frequency range |
| 0 - 100 MHz | |||||||||||||||||||||||||||||||||||
Shielding connection available |
| Yes | |||||||||||||||||||||||||||||||||||
Shield connection |
| Direct | |||||||||||||||||||||||||||||||||||
Testing standard |
| IEC 61643-21 |
