Surge protection for telecommunication systems

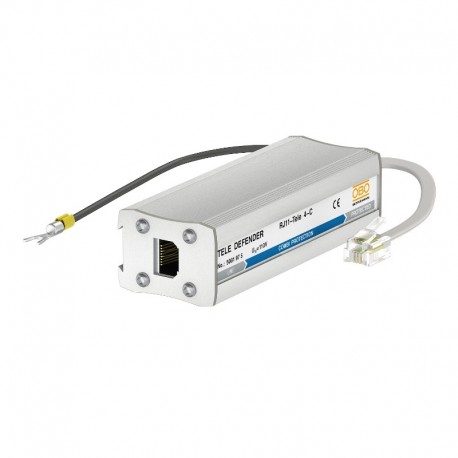

Combination protection device for ISDN RJ11
Data line protection device for analogue telecommunications systems
• In aluminium housing
• With 2-stage protection circuit
• Simple mounting
• Incl. 150 mm connection cable with RJ11 and/or RJ45 connectors•
Optimised bandwidth for TC systems
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: For analogue telecommunication systems
RJ11TELE4C | |||
Article number | 5081 97 5 | ||
Maximum continuous voltage AC | UC | V | 120 |
Maximum continuous voltage DC | UC | 170 | |
Category | Type 1+2+3 / D1+C2+C1 | ||
Lightning protection zone LPZ | 0→3 | ||
Number of poles | 4 | ||
Series resistance per wire | Ω | 8,2 Ω ± 10 % | |
Total discharge current (8/20) | kA | 4 kA | |
Total discharge current (10/350) | kA | 1,5 kA | |
Protection level wire-wire | V | <300 V | |
Protection level wire-earth | V | <660 V | |
Protection level, wire-earth at 1 kV/μs (C3) | Up | V | <245 V |
Frequency range | MHz | 0 - 12 MHz | |
Insertion loss | S21 | dB | ≤3 dB |
Temperature range | ϑ | °C | -40 - +80 °C |
Installation type | Connector/cable adapter | ||
Connection system | RJ11 | ||
Protection rating | IP40 | ||
Earthing via: | Connection cable | ||
Testing standard | IEC 61643-21 |
