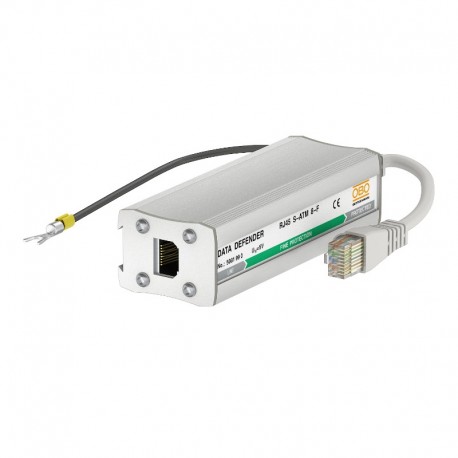

RJ45SATM8F5081990, chống sét camera IP, chống sét cổng mạng LAN, Chống sét lan truyền
Surge protection for network technology
Fine protection for Ethernet networks (Class D/CAT 5)
Universal data cable protection device for network technology and telecommunication systems
• In aluminium housing
• Protection for 8 cores
• With two-stage protective circuit
• Simple mounting
• With RJ45 Western connector
• Incl. 150 mm connection cable with RJ45 connectors
• Cat 5e network technology, 10BaseT, 100BaseT, 1000BaseT
• Hat rail mounting with accessories DLS-BS (5082 38 2)
Application: For analogue, ISDN, DSL systems, Ethernet Twisted Pair.
| RJ45SATM8F | |||
| Article number | 5081 99 0 | ||
| Maximum continuous voltage AC | UC | V | 4,2 V |
| Maximum continuous voltage DC | UC | V | 6,2 V |
| Category | Type 2+3 / C2+C1 | ||
| Lightning protection zone LPZ | 1→3 | ||
| Channel performance ISO/IEC | Class D | ||
| Channel performance Ansi/EA | CAT 5e | ||
| Number of poles | 8 | ||
| Rated current | IL | A | 1 A |
| Impulse durability wire-wire | C2: 3 kV / 1.5 kA (8/20 μs) | ||
| Impulse durability wire-earth | C2: 3 kV / 1,5 kA (8/20μs) | ||
| Total discharge current (8/20) | kA | 7,5 kA | |
| Protection level wire-wire | V | <40 V | |
| Protection level wire-earth | V | <900 V | |
| Frequency range | MHz | >155 MHz | |
| Temperature range | ϑ | °C | -40 - +80 °C |
| Installation type | Connector/cable adapter | ||
| Connection system | RJ45 8(8) | ||
| Protection rating | IP40 | ||
| Shielding connection available | Yes | ||
| Shield connection | Direct | ||
| Earthing via: | Connection cable | ||
| Testing standard | IEC 61643-21 | ||
