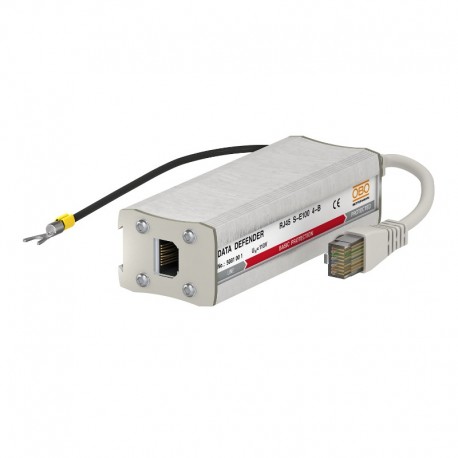

RJ45SE1004C, 5081 00 3, 5081003, chống sét tín hiệu điều khiển, chống sét cáp thông tin RJ45, chống sét cáp viễn thông RJ45
Surge protection for data technology
Combination arrestor for 4-wire information technology systems withRJ45
Data line protection device for IT systems
• In aluminium housing
• RJ45 connector
• Incl. 150 mm connection cable with RJ45 connectors
• Simple mounting using adapter
• 2-stage protection circuit
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: Twisted Pair, control circuits, RJ45 communication cables
Download tài liệu RJ45SE1004C
| RJ45SE1004C | |||
| Article number | 5081 00 3 | ||
| Maximum continuous voltage AC | UC | V | 4,2 V |
| Maximum continuous voltage DC | UC | V | 6,2 V |
| Category | Type 1+2+3 / D1+C2+C1 | ||
| Lightning protection zone LPZ | 0→2 | ||
| Number of poles | 4 | ||
| Rated current | IL | A | 0,3 A |
| Series resistance per wire | Ω | 4,7 Ω ± 10% | |
| Impulse durability wire-wire | kA (8/20 μs) | C2: 3 kV / 1.5 kA (8/20 μs) | |
| Impulse durability wire-earth | kA (8/20 μs) | C2: 3 kV / 1,5 kA (8/20μs) | |
| Impulse discharge current (10/350) | Iimp | kA | 1,5 kA |
| Total discharge current (8/20) | kA | 7,5 kA | |
| Total discharge current (10/350) | 2,5 kA | ||
| Protection level wire-wire | V | <70 V | |
| Protection level wire-earth | V | <850 V | |
| Frequency range | MHz | 0 - 109 MHz | |
| Insertion loss | S21 | dB | ≤3 dB |
| Temperature range | ϑ | °C | -40 - +80 °C |
| Installation type | Connector/cable adapter | ||
| Connection system | RJ45 | ||
| Protection rating | IP40 | ||
| Shielding connection available | Yes | ||
| Shield connection | Direct | ||
| Earthing via: | Connection cable | ||
| Testing standard | IEC 61643-21 | ||
