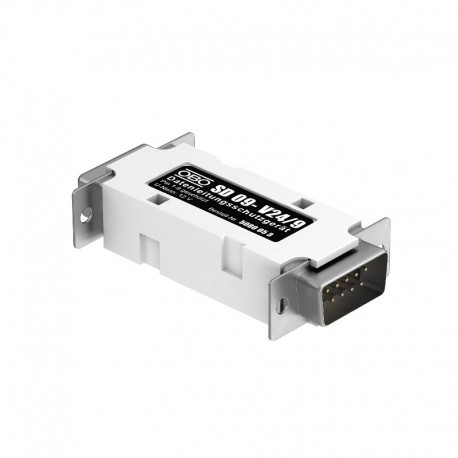

SD09-V24 9, 5080 05 3, 5080053, chống sét cổng DB9, chống sét cổng RS232, chống sét đường RS232, chống sét bộ điều khiển PLC
Surge protection for serial interfaces
Fine protection for 9-pole RS232 interface
Data cable protection devices, serial interfaces
• Various connection technologies available
• Low protection level
Application: PLC, alarm systems, controllers
| SD09-V24 9 | |||
| Article number | 5080 05 3 | ||
| Maximum continuous voltage | UC | V | 18 V |
| Category | Type 3 / C1 | ||
| Lightning protection zone LPZ | 2→3 | ||
| Number of poles | 9 | ||
| Impulse durability wire-wire | kA (8/20 μs) | 0.34 kA (8/20 μs) | |
| Impulse durability wire-earth | kA (8/20 μs) | 0,34 kA (8/20μs) | |
| Protection level wire-wire | V | <50 V | |
| Protection level wire-earth | V | <50 V | |
| Protection level, wire-earth at 1 kV/μs (C3) | Up | V | <25 V |
| Temperature range | ϑ | °C | -40 - +80 °C |
| Installation type | Connector/cable adapter | ||
| Connection system | D-Sub 9 pole | ||
| Protection rating | IP40 | ||
| Shielding connection available | Yes | ||
| Shield connection | Direct | ||
| Testing standard | IEC 61643-21 | ||
