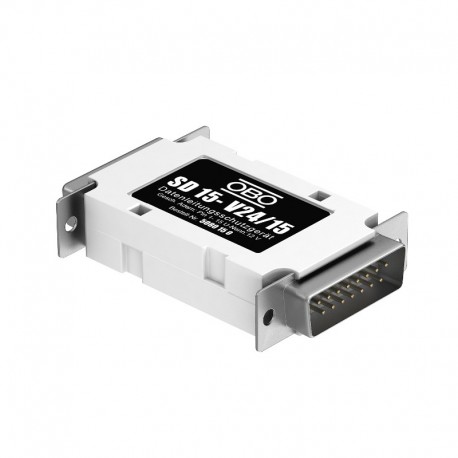

SD15-V24 15, 5080 15 0, 5080150, chống sét cổng DB15, chống sét cổng tín hiệu 15 chân, chống sét bộ PLC
Surge protection for serial interfaces
Fine protection for 15-pole RS232 interface
Data cable protection devices, serial interfaces
• Various connection technologies available
• Low protection levelApplication: PLC, alarm systems, controllers
SD15-V24 15 | |||
Article number | 5080 15 0 | ||
Maximum continuous voltage | UC | V | 18 V |
Category | Type 3 / C1 | ||
Lightning protection zone LPZ | 2→3 | ||
Number of poles | 15 | ||
Impulse durability wire-wire | kA (8/20 μs) | 0.34 kA (8/20 μs) | |
Impulse durability wire-earth | kA (8/20 μs) | 0,34 kA (8/20μs) | |
Protection level wire-wire | V | <50 V | |
Protection level wire-earth | V | <50 V | |
Protection level, wire-earth at 1 kV/μs (C3) | Up | V | <25 V |
Temperature range | ϑ | °C | -40 - +80 °C |
Installation type | Connector/cable adapter | ||
Connection system | D-Sub 15 pole | ||
Protection rating | IP40 | ||
Shielding connection available | Yes | ||
Shield connection | Direct | ||
Testing standard | IEC 61643-21 |
