SLS-B+C100, SLS-B+C100 N50, SPD T1 T2, thiết bị chống sét nguồn điện 1 pha pha 30 kA - 50 kA - 60 kA

Thông tin sản phẩm

SLS-B+C100, SLS-B+C100 N50, SPD T1 T2, thiết bị chống sét nguồn điện 1 pha pha 30 kA - 50 kA - 60 kA – 100 kA 8/20µs, Ingesco

Download Catalogue tài liệu SLS-B+C100/1+1

Download Catalogue tài liệu tổng thiết bị chống sét lan truyền Ingesco

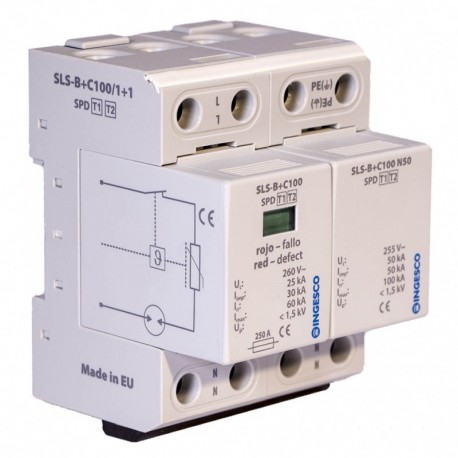

SLS-B+C100/1+1

Lightning and surge arrester for single phase lines (F + N) 220 V.

Combined type 1 and 2 (Class B + C) protector, suitable for protection of low voltage lines against lightning strikes and surges of up to 50kA (10/350) in TT (TNS) networks. Recommended for industrial facilities, systems and buildings with external lightning protection.

FEATURES

Characteristics

Single phase protector (1-pole + NPE).
Provides high protection thanks to its combination of high strength gas discharge (GDT) and a block of high-energy varistor (MOV), allowing high discharge power and a low residual voltage.
Easily replaceable plug-in modules with locking system.
Base and modules configured for secure mounting.
Easy maintenance through local fault locator.

Download data sheet

Surge arrestors SLS-B+C100/1+1

TECHNICAL DATA

Technical specifications

Description	Reference	NºFases	Grade of proteccion	Range Tª work	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (g)
SLS-B+C100/1+1	370213	F+N	IP20	de -40º a 80ºC	72	90	72	45	48	670
SLS-B+C100/220V	370215	-	IP20	de -40º a 80ºC	-	-	-	45	48	300

Parameters		L-N	NPE
Rated voltage	U_n	230 V AC	-
Maximum working voltage	U_c	260 V AC	255 V AC
Current peak value of lightning (10/350μs)	I_imp	25 kA	50 kA
Nominal discharge current (8/20μs)	I_n	30 kA	50 kA
Maximum discharge current (8/20μs)	I_max	60 kA	100 kA
Protection level	U_p	<1,50 kV
Backup fuse maximum		250A gL/Gg
Response time	t_A	100 ns
Wire cross-section, rigid min/max		2,5-50mm²
Wire cross-section, flexible min/maxIndicador		2,5-35mm²
Local fault indicator		yes	no
Mounting type		DIN rail

CERTIFICATIONS

lEC 61.643-11:2011
UNE 21.186:2011
EN 61.643-11 :2012
NFC 17-102:2011
UNE 61.643-11 :2013
UNE EN 60.664-1:2008
lEC 62.305-1, 2, 3 y 4
RBT
