SLS-B+C50/1+1, 370241, SLS-B+C50, SLS-B+C50 N, thiết bị chống sét đánh nguồn điện 1 pha, 12,5 kA - 25 kA 10/350μs, 60 kA 8/20μs
Download Catalogue tài liệu SLS-B+C50/1+1
Download Catalogue tài liệu tổng thiết bị chống sét lan truyền Ingesco

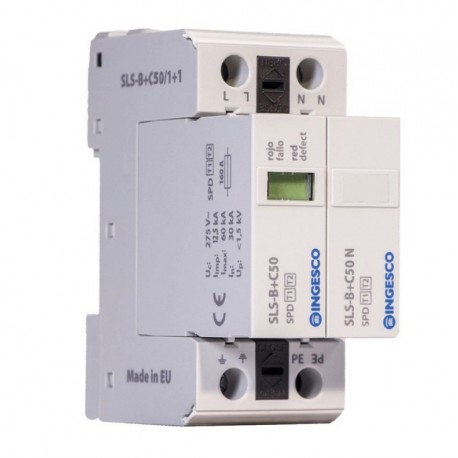

SLS-B+C50/1+1
SURGE ARRESTER
Lightning and surge arrester for single phase lines (F+N) 230 V.
Combined type 1 and 2 (Class B + C) protector, suitable for protection of low voltage lines against lightning strikes and surges of up to 25kA (10/350) in TT (TNS) networks.
Recommended for industrial facilities or buildings, with a risk of partial lightning currents, induced overvoltages during a lightning strike or switching overvoltages.
FEATURES
- Single phase protector (1 pole + NPE).
- It provides high protection and low residual stress, for its combination of high performance varistors and encapsulated spark gap.
- Easily replaceable plug-in modules with locking system.
- Base and modules configured for secure mounting.
- Easy maintenance through local fault locator.
Description | Reference | NºPhases | Grade of proteccion | Range Tª | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (g) |
SLS-B+C50/1+1 | 370241 | F+N | IP20 | -40º a 80ºC | 36 | 82 | 72 | 45 | 48 | 240 |
SLS-B+C50/220V | 370247 | - | IP20 | -40º a 80ºC | - | - | - | 45 | 48 | 95 |
Parameters |
| L-N | NPE |
Rated voltage | Un | 230 V AC | - |
Maximum working voltage | Uc | 260 V AC | 255 V AC |
Current peak value of lightning (10/350μs) | Iimp | 12,5 kA | 25 kA |
Nominal discharge current (8/20μs) | In | 30 kA | 30 kA |
Maximum discharge current (8/20μs) | Imax | 60 kA | 60 kA |
Protection level | Up | <1'2 kV | <1'5 kV |
Backup fuse maximum |
| 160 A gL/gG | - |
Response time | tA | 25 ns | 100 ns |
Wire cross-section, rigid min/max |
| 1-35mm2 | |
Wire cross-section, flexible min/maxIndicador |
| 1-25mm2 | |
Local fault indicator |
| yes | no |
Mounting type |
| rail DIN 35mm |
- lEC 61.643-11:2011
- UNE 21.186:2011
- EN 61.643-11 :2012
- NFC 17-102:2011
- UNE 61.643-11 :2013
- UNE EN 60.664-1:2008
- lEC 62.305-1, 2, 3 y 4
- RBT
