Combination arrestor set, 3-pole, with visual function display, for use
in TN-C networks:
Completely pre-terminated and ready for connection, consisting of:
MCD 50-B-OS: Type 1 (Class B) coordinated lightning current
arrestors to DIN EN 61643-11. For interface 0 to 2 (LPZ) in
accordance with lighting protection zone concept to IEC 61312-1
and/or DIN VDE 0185-305.
• Arresting capacity 50 kA 10/350 µs per pole
• Power consumption • Protection level • Line follow current
quenching 25 kA Ipeak
• lncl. plug caps for identifying the connections
• Encapsulated, non-extinguishing spark gap
• Can be used in standard distributor housings
Application example: Compact surge protection concepts and
installations of arrestors of requirements Class B+C in a distributor
without decoupling inductances or cable lengths, e.g. directly on the
mobile radio transmission system technology.

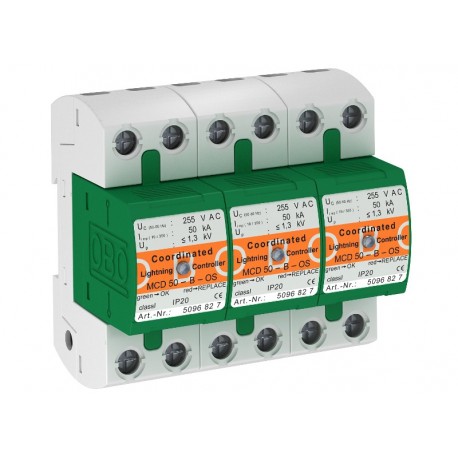

Type: MCD 50-B 3-OS
Article number 5096835
Nominal voltage UN V 230
SPD to EN 61643-11 Type 1
SPD to IEC 61643-1 class I
LPZ 0→2
Lightning impulse current (10/350) Iimp kA 50
Lightning impulse current (10/350) [total] kA 150
Nominal discharge surge current (8/20) In kA 50
Arrester surge current (8/20) [total] kA 150
Voltage protection level Up kV 1,3
Response time tA ns <100
Follow current quenching capacity Ipeak Ifi peak kA 25
Maximum back-up fuse A 500
Temperature range ϑ °C -40
Division unit TE (17.5 mm) 6
Protection rating IP 20
Connection cross-section, rigid mm² 10
Connection cross-section, multi-wire mm² 10
Maximum continuous voltage V: 255
Version: 3-pole
Pack Units: 1
Weight kg/100 pc: 118.000
Art.-No. :5096835
