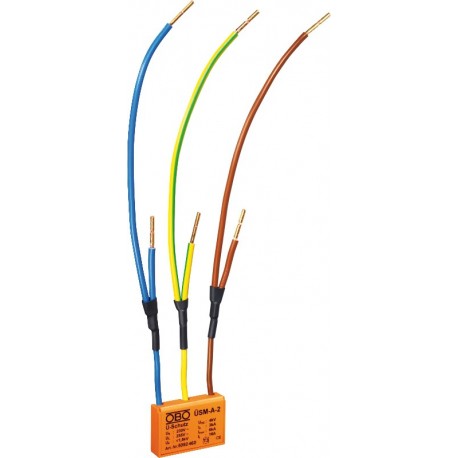

Fine power protection, fixed installation

Fine power protection for through wiring

Surge protection device type 3 to DIN EN 61643-11 for 230 V networks.

• With acoustic defect signal

• With 2 strands for continuous wiring

• With low construction height

• Y circuit

Application: Universally applicable for all installation systems.

Download tài liệu tổng

ÜSM-A-2
Article number			5092 46 0
Nominal voltage	Un	V	230
Max. continuous operating voltage	UC	V	255
SPD to EN 61643-11			Type 3
SPD to IEC 61643-11			Class III
Lightning protection zone LPZ			2→3
Nominal discharge current (8/20)	In	kA	3
Protection level (L-N)	Up	kA	<1,3
Protection level (N-PE)	Up	kA	<1,5
Maximum back-up fuse		A	16
Response time	tA	ns	<25
Temperature range	ϑ	°C	-15 - +60
Maximum discharge current (8/20 μs)	Imax	kA	6
Rated current	IL	A	16
