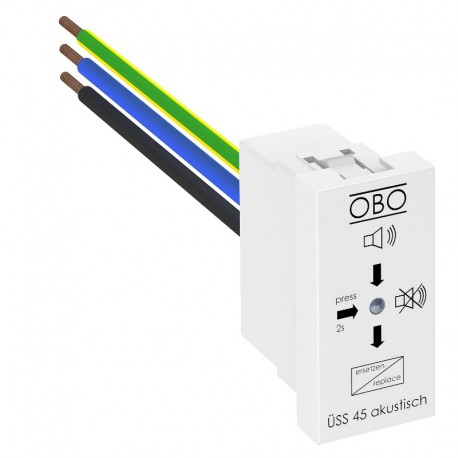

Fine power protection, fixed installation

Fine power protection / dado duct installation Modul 45

Surge protection / network fine protection, type 3, according to EN 61643-11 for installation inRapid 45 trunking, device installation trunking and underfloor systems.

• Version-A with acoustic function display (switchable signal tone)

• Quick and easy mounting

• Low construction width of 22.5 mm

Application: The surge protection device secures downstream and nearby sockets.

Download tài liệu tổng

ÜSS 45-A-RW
Article number			6117 46 5
Nominal voltage	Un	V	230
Max. continuous operating voltage	UC	V	255
SPD to EN 61643-11			Type 3
SPD to IEC 61643-11			Class III
Lightning protection zone LPZ			2→3
Nominal discharge current (8/20)	In	kA	2,5
Protection level (L-N)	Up	kA	<1,5
Protection level (N-PE)	Up	kA	<1,5
Maximum back-up fuse		A	16
Response time	tA	ns	<25
Temperature range	ϑ	°C	-25 - +45
