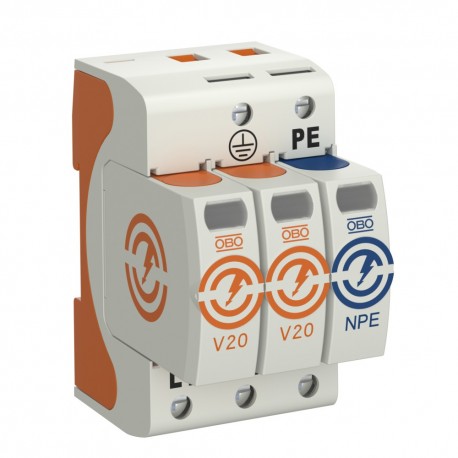

V20-2+NPE-150, chống sét, chống sét lan truyền, chống sét nguồn 2 dây pha 1 dây trung tính, chống sét nguồn 150V

V20-2+NPE-150

Maximum continuous voltage AC

U­_N

V

150

Test class (EN 61643-11)

Type 2

Nominal discharge current (8/20)

I­_n

kA

20

Maximum discharge current

I­_max

kA

40

Protection level

kV

0,8

Network form

All

Mounting type

Hat rail 35 mm

Pole version

2+N/PE

Size

3 TE

Max. mains-side overcurrent protection

A

125 A gL/gG

Protection rating

IP20

Operating temperature range

T_u

-40 - +80

Signalling on device

Visual

Switching power AC

Switching power DC

Max. cable cross-section flexible (fine-wire)

mm²

25

Max. cable cross-section rigid (single wire/multiwire)

mm²

35

Item No.

5095 23 2
