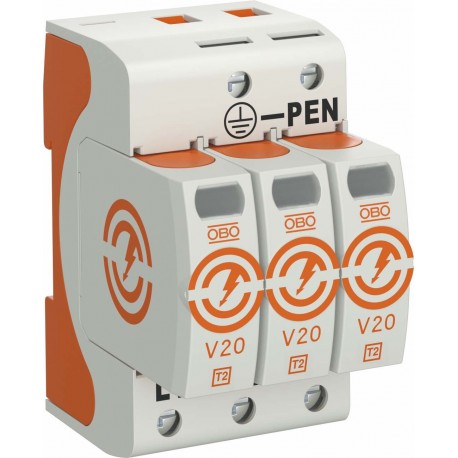

V20-3-150, chống sét, chống sét lan truyền, cắt lọc sét nguồn điện 3 pha, chống sét nguồn 150V, chống sét nguồn 110V
V20-3-150 | |||
Maximum continuous voltage AC | UN | V | 150 |
Test class (EN 61643-11) | Type 2 | ||
Nominal discharge current (8/20) | In | kA | 20 |
Maximum discharge current | Imax | kA | 40 |
Protection level | kV | 0,8 | |
Network form | All | ||
Mounting type | Hat rail 35 mm | ||
Pole version | 3 | ||
Size | 3 TE | ||
Max. mains-side overcurrent protection | A | 125 A gL/gG | |
Protection rating | IP20 | ||
Operating temperature range | Tu | -40 - +80 | |
Signalling on device | Visual | ||
Switching power AC | |||
Switching power DC | |||
Max. cable cross-section flexible (fine-wire) | mm2 | 25 | |
Max. cable cross-section rigid (single wire/multiwire) | mm2 | 35 | |
Item No. | 5095 15 3 |
