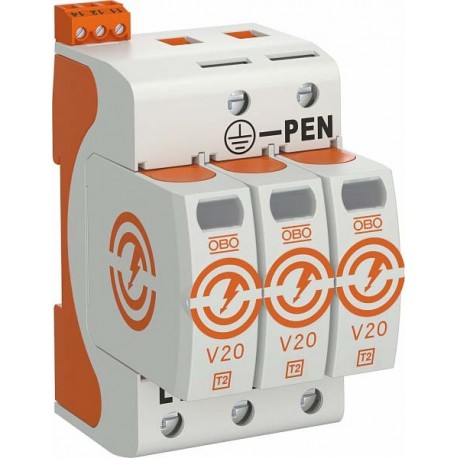

V20-3+FS-550

V20-3+FS-550

Maximum continuous voltage AC

U­_N

V

550

Test class (EN 61643-11)

Type 2

Nominal discharge current (8/20)

I­_n

kA

15

Maximum discharge current

I­_max

kA

40

Protection level

kV

2,4

Network form

All

Mounting type

Hat rail 35 mm

Pole version

3

Size

3 TE

Max. mains-side overcurrent protection

A

125 A gL/gG

Protection rating

IP20

Operating temperature range

T_u

-40 - +80

Signalling on device

Visual

Switching power AC

230 V; 0,5 A

Switching power DC

230 V; 0,1 A /

75 V; 0,5 A

Max. cable cross-section flexible (fine-wire)

mm²

25

Max. cable cross-section rigid (single wire/multiwire)

mm²

35

Item No.

5095 31 3
