V201280, chống sét lan truyền, chống sét lan truyền nguồn điện 1 pha cấp 2, chống sét OBO, chống sét nguồn điện 220V

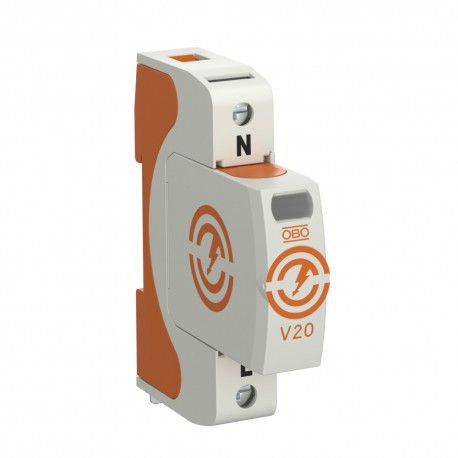

V201280

Maximum continuous voltage AC

U­_N

V

280

Test class (EN 61643-11)

Type 2

Nominal discharge current (8/20)

I­_n

kA

20

Maximum discharge current

I­_max

kA

40

Protection level

kV

1,3

Network form

All

Mounting type

Hat rail 35 mm

Pole version

1

Size

1 TE

Max. mains-side overcurrent protection

A

125 A gL/gG

Protection rating

IP20

Operating temperature range

T_u

-40 - +80

Signalling on device

Visual

Switching power AC

Switching power DC

Max. cable cross-section flexible (fine-wire)

mm²

25

Max. cable cross-section rigid (single wire/multiwire)

mm²

35

Item No.

5095 16 1
