PV type 2 surge protection complete block 600 V and 1,000 V DC

PV surge protection V20, 600 V DC

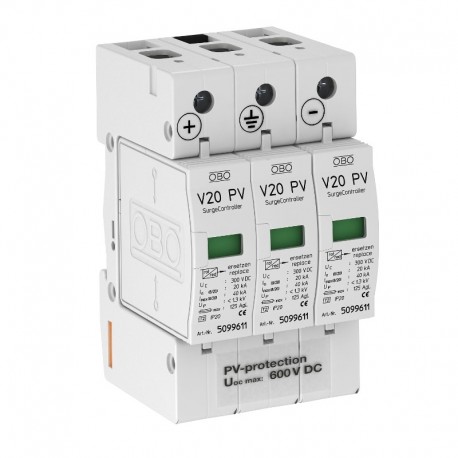

V20 surge arrester, Type 2, for PV systems

• Complete unit, consisting of plug-in varistor arrester with cut-off unit

• Error-resistant Y circuit for use according to VDE 0100-712 (EN 50539-12)

• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Arresting capacity to 40 kA (8/20) per pole

• Low DC protection level: < 2.6 kV (Voc max = 600 V DC)

• Arrester, connectable with thermodynamic cut-off unit and visual function display

• Encapsulated, zinc oxide varistor arrester for use in distributor housings

Application: PV systems with or without separate lightning protection system

V20C3PH600
Article number			5094 60 5
U max DC	Uc DC	V	600
SPD to EN 61643-11			Type 2
Lightning protection zone LPZ			1→2
Nominal discharge current (8/20)	In	kA	20
Maximum discharge current (8/20 μs)	Imax	kA	40
Voltage protection level	Up	kV	<2,6
Response time	tA	ns	<25
Temperature range	ϑ	°C	-40 - +80
Protection rating			IP20
Division unit TE (17.5 mm)			3
Connection cross-section rigid			2.5 - 35 mm²
Connection cross-section, multi-wire			2.5 - 35 mm²
Connection cross-section, flexible			2.5 - 25 mm²
