V25-B+C 4-FS-G, V25-B+C 4+FS-G, V25-B+C/4+FS-G, 5094 55 2, 5094552, chống sét nguồn điện 3 pha, chống sét lan truyền, Long Triết
Surge protection energy technology, arrestor 1+2:
The plus of the V25-B+C family

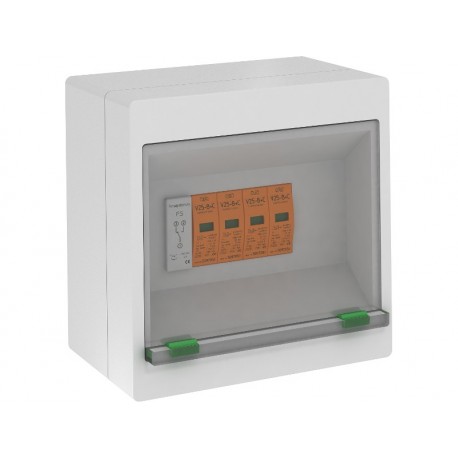

Combination arrestor V25, 280 VCombination arrestor, 4-pole in housing with remote signalling
V 25-B+C/...: Combination arrestor set, lightning and surge arrestor Type 1+2 to DIN EN 61643-11 (B+C to VDE 0675 Part 6).
• With new Multibase base with multi connection terminals
• Complete unit consisting of cover and base, pre-mounted and ready for connection in IP65 insulation housing
• For TN systems
• Plug-in arrestor with dynamic isolating device
• With visual function display
• With FS (remote signalling) as potential-free NO contact
• Voltage protection level
• Encapsulated non-extinguishing zinc oxide varistor arrestor for use in standard distributor housings
• Marked connections
Application example: Building with open-wire power supply or for setting up lightning protection equipotential bonding in residential buildings.
