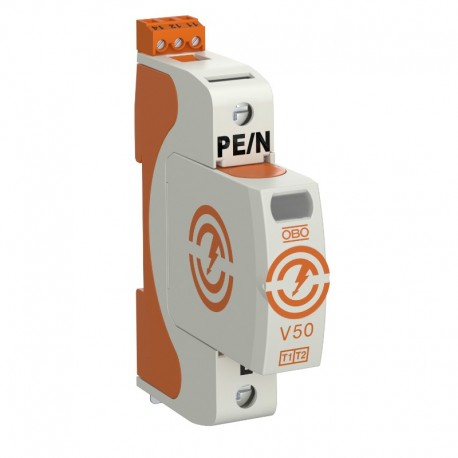

V50-1+FS-280

Article number

5093 50 2

SPD to EN 61643-11

Type 1+2

SPD to IEC 61643-11

Class I+II

SPD to UL 1449

Type 4

Nominal voltage AC (50 / 60 Hz)

Un

V

230

Maximum continuous voltage AC

UC

V

280

Nominal discharge current (8/20 μs)

In / L-N

kA

30

Maximum discharge current (8/20 μs)

Imax

kA

50

Lightning surge current (10/350 μs)

Iimp

kA

12,5

Total discharge current (10/350)

Itotal

kA

-

Arrester surge current (8/20 μs) [total]

Itotal

kA

-

Protection level [L-N]

Up

kV

1,3

Protection level [L-N] @ 1 kA

Ures

kV

0,7

Protection level [L-N] @ 5 kA

Ures

kV

0,8

Max. mains-side overcurrent protection gL/gG

A

160

Short-circuit resistance for max. mains-side overcurrent protection

kA eff

50

Operating temperature range

Tu

°C

-40 - +80

Protection rating

IP20

Approvals

UL, ÖVE, VDE

FM contacts

Changeover

Switching power AC

230 V; 0,5 A

Switching power DC

230 V; 0,1 A / 75 V; 0,5 A

Connection cross-section, FM terminals

0,5 - 1,5 mm²

Connection cross-section, FM terminals

21 - 16 AWG

Cable cross-section, flexible (fine-wire)

1.5 - 35 mm²

Rigid cable cross-section (single wire/multiwire)

1.5 - 35 mm²

Cable cross-section, flexible (fine-wire)

16 - 2 AWG

Rigid cable cross-section (single wire/multiwire)

16 - 2 AWG
