V50-3-385, 5093 57 4, 5093574, chống sét, chống sét lan truyền, cắt lọc sét nguồn điện 385V, chống sét nguồn điện OBO, Long Triết

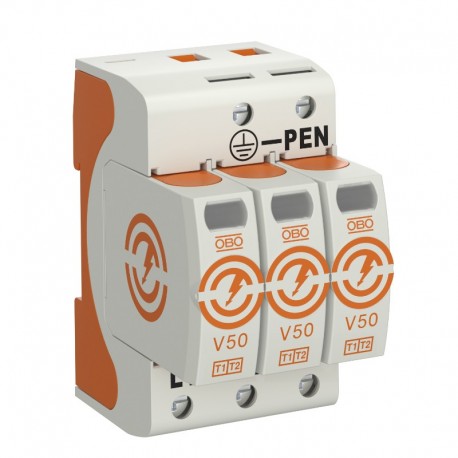

Combination arrestor V50 in 385 V, type 1+2
Combination arrestor V50, 3-pole 385 V
Lightning current combination arrestor, type 2
• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA(10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling
Application: Lighting current equipotential bonding for buildings of class III and IV.
| V50-3-385 | |||
| Article number | 5093 57 4 | ||
| SPD to EN 61643-11 | Type 1+2 | ||
| SPD to IEC 61643-11 | Class I+II | ||
| SPD to UL 1449 | Type 4 | ||
| Nominal voltage AC (50 / 60 Hz) | Un | V | 350 |
| Maximum continuous voltage AC | UC | V | 385 |
| Nominal discharge current (8/20 μs) | In / L-N | kA | 30 |
| Maximum discharge current (8/20 μs) | Imax | kA | 50 |
| Lightning surge current (10/350 μs) | Iimp | kA | 12,5 |
| Total discharge current (10/350) | Itotal | kA | 37,5 |
| Arrester surge current (8/20 μs) [total] | Itotal | kA | 120 |
| Protection level [L-N] | Up | kV | 1,8 |
| Protection level [L-N] @ 1 kA | Ures | kV | 1,1 |
| Protection level [L-N] @ 5 kA | Ures | kV | 1,2 |
| Max. mains-side overcurrent protection gL/gG | A | 160 | |
| Short-circuit resistance for max. mains-side overcurrent protection | kA eff | 50 | |
| Operating temperature range | Tu | °C | -40 - +80 |
| Protection rating | IP20 | ||
| Approvals | UL, ÖVE, VDE | ||
| Cable cross-section, flexible (fine-wire) | 1.5 - 35 mm² | ||
| Rigid cable cross-section (single wire/multiwire) | 1.5 - 35 mm² | ||
| Cable cross-section, flexible (fine-wire) | 16 - 2 AWG | ||
| Rigid cable cross-section (single wire/multiwire) | 16 - 2 AWG | ||
