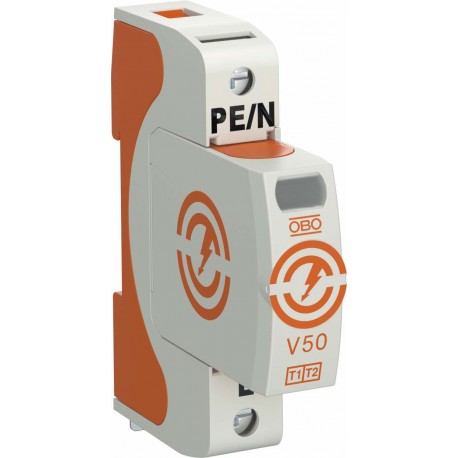

V501280, chống sét, chống sét lan truyền OBO, cắt lọc sét OBO, chống sét cấp 1 kết hợp cấp 2

V501280

Maximum continuous voltage AC

U­_N

V

280

Test class (EN 61643-11)

Type 1 and 2

Lightning surge current (10/350)

kA

12,5

Nominal discharge current (8/20)

I­_n

kA

30

Maximum discharge current

I­_max

kA

50

Protection level

kV

1,3

Network form

All

Mounting type

Hat rail 35 mm

Pole version

1

Size

1 TE

Max. mains-side overcurrent protection

A

160 A gL/gG

Protection rating

IP20

Operating temperature range

T_u

-40 - +80

Signalling on device

Visual

Switching power AC

Switching power DC

Max. cable cross-section flexible (fine-wire)

mm²

25

Max. cable cross-section rigid (single wire/multiwire)

mm²

35

Item No.

5093500
