PV type 1+2 lightning current and surge protection 600 V and 900 V DC

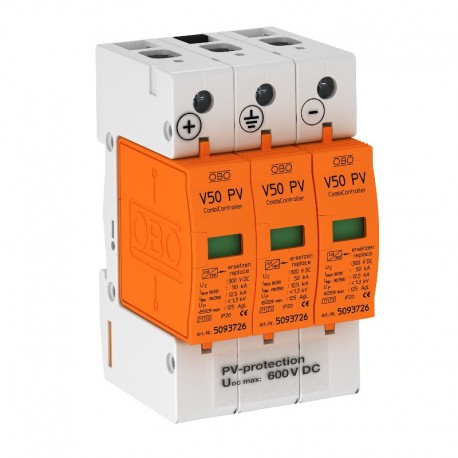

PV combination arrestor V50, 600 V DC

V50 combination arrester, Type 1+2, for photovoltaic systems

• Complete unit, consisting of plug-in varistor arrester with cut-off unit

• Error-resistant Y circuit to VDE 0100-712 (EN 50539-12)

• Surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Arresting capacity up to 12.5 kA (10/350) and 50 kA (8/20) per pole

• Low DC protection level: < 2.6 kV and Voc max = 600 V DC

• With visual function display for use in distributor housings

Application: PV systems with lightning protection system

Download tài liệu V50BC3PH600

V50BC3PH600
Article number			5093 62 3
U max DC	Uc DC	V	600
SPD to EN 61643-11			Type 1+2
Lightning protection zone LPZ			0→2
Impulse discharge current (10/350)	Iimp	kA	12,5
Nominal discharge current (8/20)	Imax	In	30
Maximum discharge current (8/20 μs)	Imax	kA	50
Voltage protection level	Up	kV	<2,6
Response time		ns	<25
Temperature range	ϑ	°C	-40 - +80
Protection rating			IP20
Division unit TE (17.5 mm)			3
Connection cross-section rigid			2.5 - 35 mm²
Connection cross-section, multi-wire			2.5 - 35 mm²
Connection cross-section, flexible			2.5 - 25 mm²
