PV system solution with fuse holder

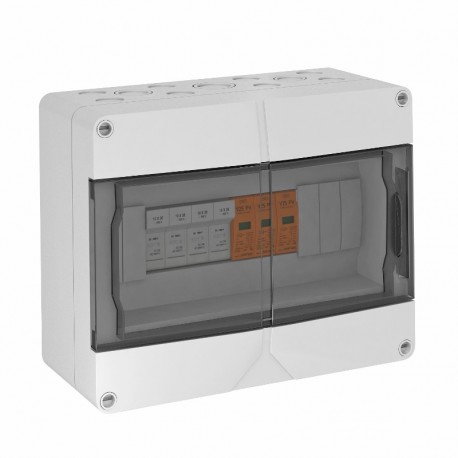

Photovoltaic housing with 4 fuse holders, V25, 900 V

System solution for photovoltaic fuses (unequipped) for photovoltaic inverters with 1 MPPtracker

• Error-resistant Y circuit to VDE 0100-712 (50539-12)

• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-450PV)

• (+) poles protected via 4 photovoltaic fuses 10x38 mm (unequipped), 900 V DC protected

• 4 (-) poles via terminal up 6 mm² switched in parallel in the housing, up to 30 A DC per terminal

• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside, including cablegland kit

For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, furthermeasures may be necessary!

Download tài liệu tổng

VG-BC PV900KS4
Article number			5088 64 0
U max DC	Uc DC	V	1000
SPD to EN 61643-11			Type 1+2
Lightning protection zone LPZ			1→2
Impulse discharge current (10/350)	Iimp	kA	7
Nominal discharge current (8/20)	In	kA	30
Maximum discharge current (8/20 μs)	Imax	kA	60
Voltage protection level	Up	kV	<3,0
Response time		ns	<25
Temperature range	ϑ	°C	-40 - +80
Protection rating			IP65
