PV system solution for inverter with 2/3 MPP trackers and connection terminals

PV system solution, type 1+2, for inverter with 3 MPP trackers, 900 VDC

System solution for photovoltaic inverter with 3 separate MPP trackers

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712(50539-12)

• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-450PV)

• Per protection device there are 6 terminals up to 6 mm² pre-mounted in the housing, up to30 A DC per terminal

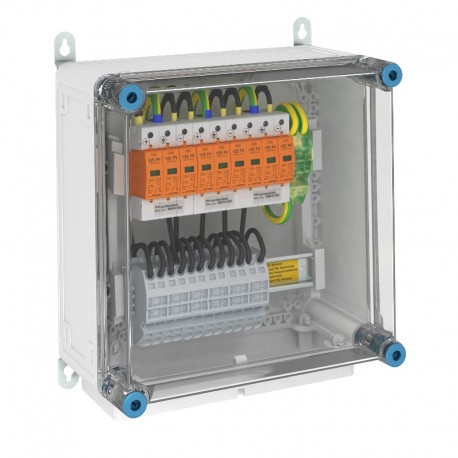

• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside, including cablegland kit

For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, furthermeasures may be necessary!

VG-BCPV 900K 333
Article number			5088 57 9
U max DC	Uc DC	V	900
SPD to EN 61643-11			Type 1+2
Lightning protection zone LPZ			0→2
Impulse discharge current (10/350)	Iimp	kA	7
Nominal discharge current (8/20)	In	kA	30
Maximum discharge current (8/20 μs)	Imax	kA	60
Voltage protection level	Up	kV	<3,0
Response time		ns	<25
Temperature range	ϑ	°C	-40 - +80
Protection rating			IP65
