PV system solution for inverter with 2 MPP trackers and connection terminals

PV system solution, type 2, for inverter with 1 MPP trackers, 900 V DC

System solution for photovoltaic fuses (unequipped) for photovoltaic inverters with 1 MPPtracker

• Error-resistant Y circuit to VDE 0100-712 (50539-12)

• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V50-C/0-450PV)

• (+) poles protected via 1 photovoltaic fuses 10x38 mm (unequipped), 900 V DC protected

• 1 (-) pole via terminal up 6 mm² switched in parallel in the housing, up to 30 A DC per terminal

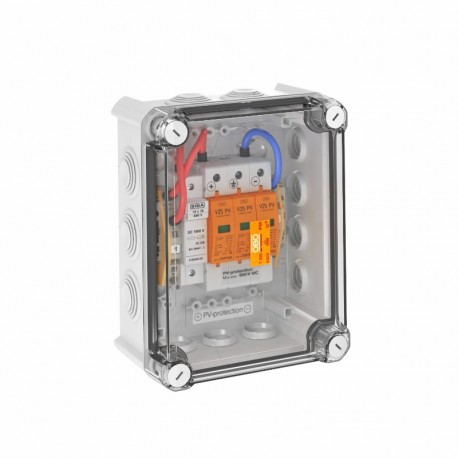

• Pre-mounted in polycarbonate housing (IP66), UV-resistant for use outside, including cablegland kit

For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, furthermeasures may be necessary!

Download tài liệu tổng

VG-BCPV 900KS 1
Article number			5088 58 0
U max DC	Uc DC	V	900
SPD to EN 61643-11			Type 1+2
Lightning protection zone LPZ			0→2
Impulse discharge current (10/350)	Iimp	kA	7
Nominal discharge current (8/20)	In	kA	30
Maximum discharge current (8/20 μs)	Imax	kA	60
Voltage protection level	Up	kV	<3,0
Response time		ns	<25
Connection cross-section rigid			0.5 - 10 mm²
Connection cross-section, flexible			0.5 - 6 mm²
Temperature range	ϑ	°C	-30 - +90
Protection rating			IP66
