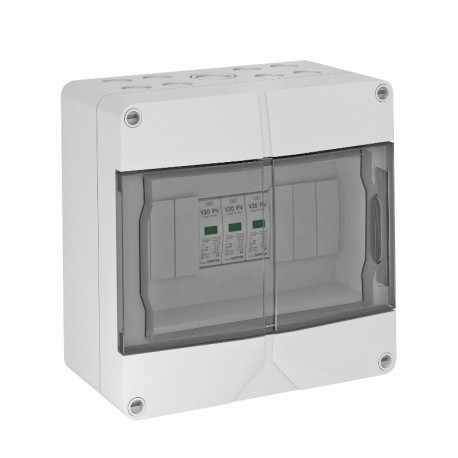

PV system solution with connection terminals

PV system solution with connection terminals, type 2, 1,000 V DC, incl.V-Tec entry set

System solution for photovoltaic systems with connection terminals and entry set

• Error-resistant Y circuit with 3 varistors for use according to VDE 0100-712

• Low DC protection level: < 4.0 kV (Voc max = 1000 V DC with V20-C/0-500PV)

• 5 parallel connection terminals to 6 mm² per polarity (+ and -)

• V-Tec entries set included

• Arrester, connectable with thermodynamic cut-off unit and visual function display

• Encapsulated zinc oxide varistor arrester for use in distributor housings

• Polycarbonate housing, weatherproof for outdoor use.

Note: 5 PV strings can be switched in parallel on the terminals. The technical data (string voltage,etc.) and the conditions of the converter (number of MPP trackers) must be taken intoaccount.

Note: If there is a danger of condensation formation, wind, ice formation, temperatures and directsunlight, additional measures may be necessary!

Download tài liệu tổng

VG-C DCPH1000-4K
Article number			5088 65 0
U max DC	Uc DC	V	1000
SPD to EN 61643-11			Type 1+2
Lightning protection zone LPZ			1→2
Impulse discharge current (10/350)	Iimp	kA	-
Nominal discharge current (8/20)	In	kA	20
Maximum discharge current (8/20 μs)	Imax	kA	40
Voltage protection level	Up	kV	<4,0
Response time		ns	<25
Connection cross-section String			0.5 - 6 mm²
Anschlussquerschnitt PE			0.5 - 6 mm²
Temperature range	ϑ	°C	-40 - +80
Protection rating			IP65
